RIBBON BLENDER
RIBBON BLENDER machine WORKING PRINCIPLE
- Ribbon Blender: Working Principle by Wecan Engineering Solutions
A ribbon blender is an essential industrial mixing machine designed for efficient and uniform blending of powders, granules, and other materials. Wecan Engineering Solutions, a trusted name in mixing technology, manufactures high-performance ribbon blenders tailored to diverse industries.
How It Works:
- First, the process begins with the loading of materials into the U-shaped trough, ensuring optimal distribution. Then, the motor-driven helical ribbons rotate, creating a counterflow mixing pattern—the inner ribbon moves material outward, while the outer ribbon pulls it inward.
- As a result, the continuous movement ensures homogeneous blending, preventing material segregation or dead zones. Moreover, the dual-direction flow maximizes efficiency, ensuring a consistent mix throughout the batch.
- Finally, once fully blended, the product is discharged smoothly through the bottom outlet, ready for further processing or packaging.
Why Choose Us:
Precision Engineering – Not only are these blenders built with high-grade stainless steel, but they also ensure durability and hygiene.
Customizable Solutions – Whether you need a standard model or a specialized design, Wecan Engineering Solutions offers tailored configurations to meet specific industrial needs.
High-Efficiency Mixing – Thanks to the optimized ribbon movement, these blenders provide fast and consistent blending, reducing processing time.
Industry Expertise – With years of experience, Wecan Engineering Solutions remains a trusted manufacturer, delivering reliable and innovative mixing technology.
For more information or to discuss your specific requirements, please visit our website at https://www.wecanmachinery.com or contact us directly at [email protected]
RIBBON BLENDER MIXER MACHINE FROM WECAN ENGINEERING SOLUTIONS, A LEADING MACHINE MANUFACTURER IN INDIA.
Ribbon Blender Manufacturer in India: Wecan Engineering Solutions
Wecan Engineering Solutions, based in Kathlal, Kheda, Gujarat, manufactures high-quality ribbon blenders and other industrial mixing equipment. We established our company in 2012, and since then, we have focused on developing innovative, high-tech products that conform to the latest industry trends.
Our Ribbon Blenders: Our ribbon blenders efficiently mix pharmaceutical, food, and nutraceutical products. Consequently, these machines ensure uniform blending and meet the highest standards of quality and reliability.

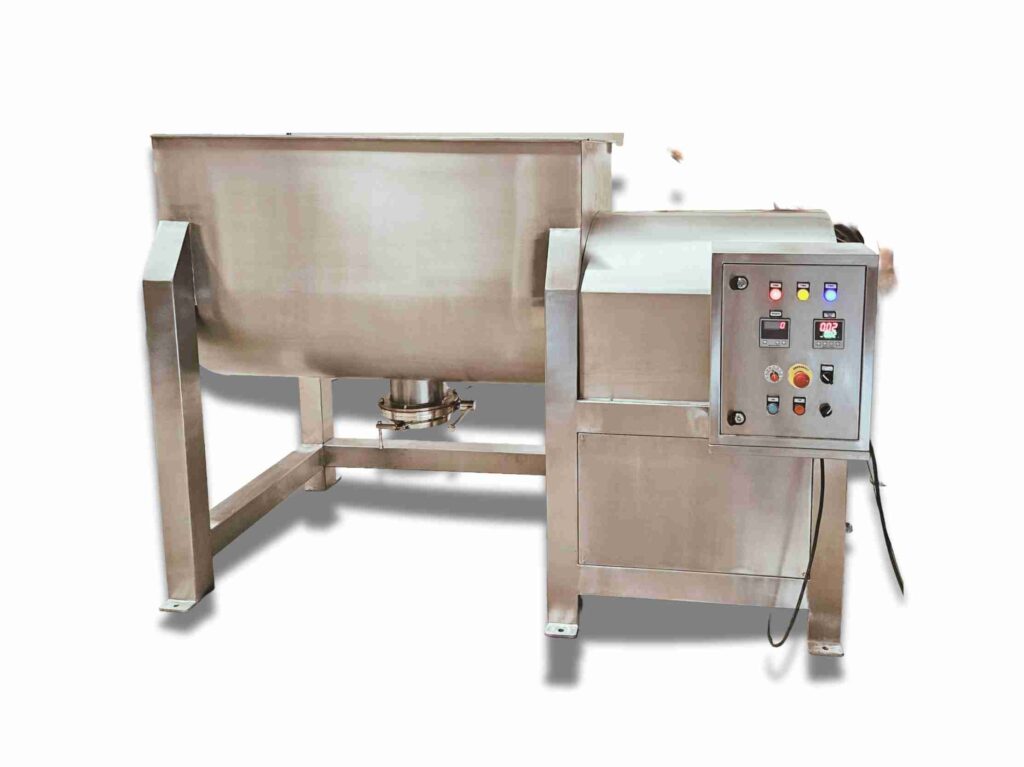

PRODUCTION SCALE RIBBON blender machine video, image and catalogue pdf.
Efficient Mixing: Firstly, the design actively employs dual helical ribbons that rapidly mix materials. This configuration eliminates dead zones and prevents material segregation, ensuring a uniform blend every cycle.
Versatility: Moreover, the machine handles various materials, including dry powders, granules, and even liquid-solid formulations. It adapts readily to industries such as pharmaceuticals, food processing, and chemicals.
Gentle Handling: In addition, the blender gently mixes ingredients without harsh forces. It preserves delicate textures and maintains the structural integrity of fragile components during processing.
Energy Efficiency: Furthermore, the engineers optimize the machine’s design to minimize energy consumption. This efficiency lowers operating costs while still providing rapid and consistent mixing.
Ease of Operation: Additionally, operators load, mix, and discharge products through a user-friendly process. The simple operation reduces training time and boosts overall productivity.
Low Maintenance: Also, the robust construction simplifies cleaning and maintenance, which the team carries out quickly. This design minimizes downtime and ensures continuous production.
Customizable Design: Finally, manufacturers offer customization options such as jackets for temperature control, vacuum systems, and liquid-spraying attachments. These features let users tailor the blender to meet specific industrial requirements.
machine SPECIFICATIONS
| Sr no | Specifications | Details |
|---|---|---|
| 1 | Capacity | 5 kg, 50 kg, 100 kg, 200 kg, 300 kg, 500 kg |
| 2 | Gross Volume | 12 L, 125 L, 250 L, 500 L, 750 L, 1250 L |
| 3 | Motor Power | 0.5 HP, 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, |
| 4 | Gear Box | Elecon, Redicon, CPEC, Shanthi make |
| 5 | Material | Stainless Steel (SS304, SS316) |
| 6 | Construction | Stainless Steel frames |
| 7 | Butterfly Valve | Equipped for efficient discharge |
| 8 | Safety Features | Safety guard, interlock systems, overload protection |
| 9 | Discharge Height | 300 mm, 450 mm |
| 10 | Additional Features | Dust-free bin charging system, flame-proof electricals, PLC + HMI base systems, slant design, manual rotating facility with hand wheel, polished interior and exterior surfaces, mirror polished fixed buffers inside the cone, three-phase indication, D.O.L. tarter, digital timer, Amp Meter |
APPLICATION of RIBBON blender mixer machine
Below is overview of how industries use ribbon blenders, that clearly guide you through each application:
Pharmaceutical Manufacturing: Firstly, manufacturers use ribbon blenders to mix active ingredients and excipients in tablet and capsule formulations. As a result, the mixers maintain precise homogeneity, which guarantees consistent dosage and therapeutic efficacy.
Food Processing: Moreover, food producers blend dry ingredients such as flour, spices, and sugars using ribbon blenders. Consequently, they achieve uniform flavors and textures in every product batch.
Chemical Production: Next, chemical engineers combine catalysts, pigments, and additives in these mixers. Thus, the equipment creates homogeneous mixtures that meet strict industry standards for dyes, detergents, and other chemicals.
Cosmetic Manufacturing: In addition, cosmetic manufacturers mix powders, creams, and lotions with ribbon blenders. Hence, they maintain consistent product texture and quality, satisfying both consumers and regulatory requirements.
Agricultural Applications: Furthermore, agricultural producers employ ribbon blenders to evenly mix fertilizers and feed premixes. As a consequence, they ensure balanced nutrient distribution that promotes optimal plant growth and animal nutrition.
Plastic and Rubber Compounding: Finally, manufacturers in the plastics and rubber industries blend compounds and additives uniformly using ribbon blenders. Therefore, they enhance material properties, ultimately improving performance during molding and extrusion processes.
Each application demonstrates how ribbon blenders actively improve production efficiency and product quality across various industries.
RIBBON blender machine DIAGRAM DESCRIPTIONS
Diagram Explanation:
Top Inlet: Materials enter the blender here.
U-Shaped Trough: Contains the blending process and guides the flow of materials.
Central Shaft: Located centrally, it rotates to drive the mixing action.
Inner and Outer Ribbons: Affixed to the central shaft, these ribbons move in opposite directions to create a counterflow that blends the ingredients uniformly.
Discharge Outlet: After blending, the mixture exits here for further processing.
